Autel IM608 II Adds 2014–2019 Chevy Corvette C7 Key Successfully

In this article, we will discuss how to add a key to a 2014 Chevrolet Corvette C7 using the Autel IM608 II Key Programming Tool. This tool is designed to make key programming and remote control configuration easier for automotive professionals.


1. Generate Key

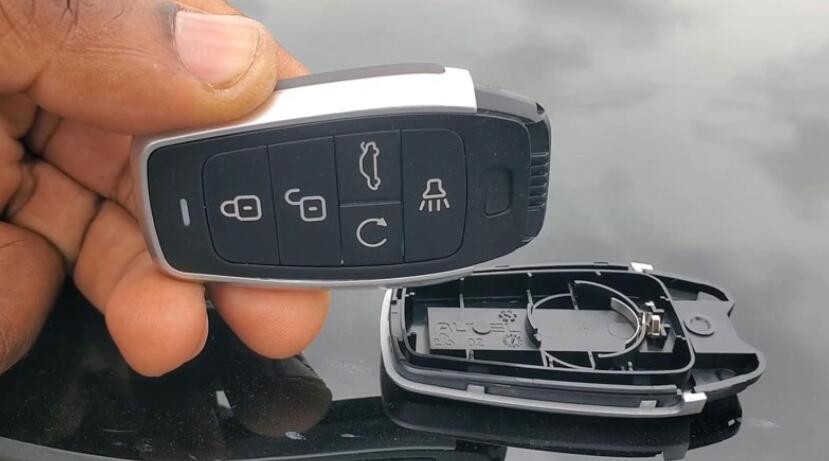

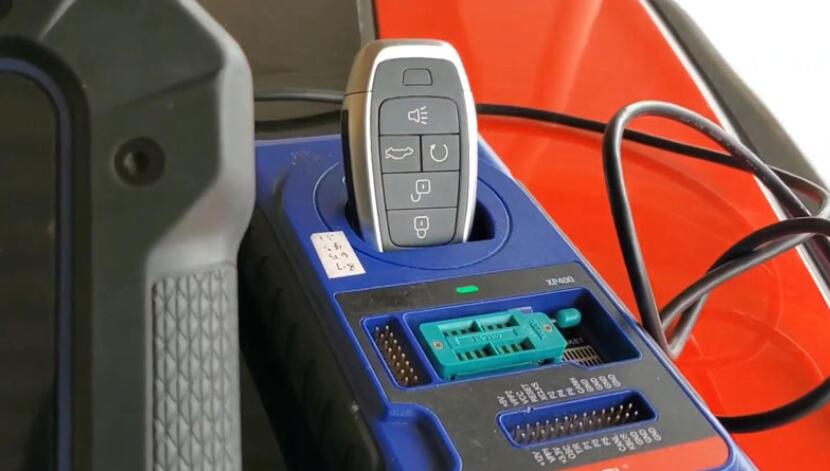

Put IKEY remote into XP400Pro coil.

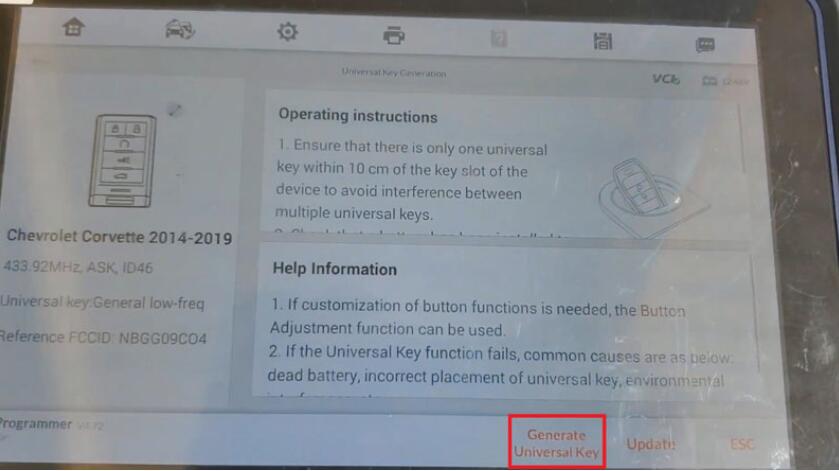

Universal Key >> Accept >> Universal Key >> Universal key generation >> North America >> Chevrolet >> Type by Model >> Corvette >> 2014 >> Chevrolet Corvette 2014–2019 >> Generate universal key

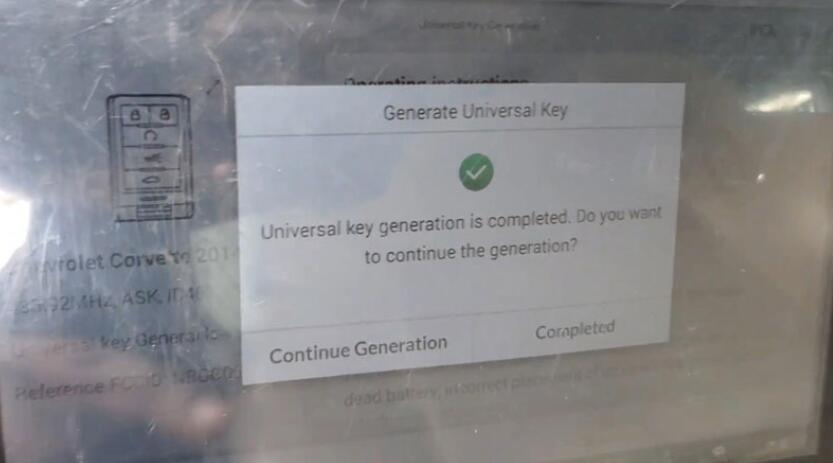

Key generation is successful.


2. Add Key

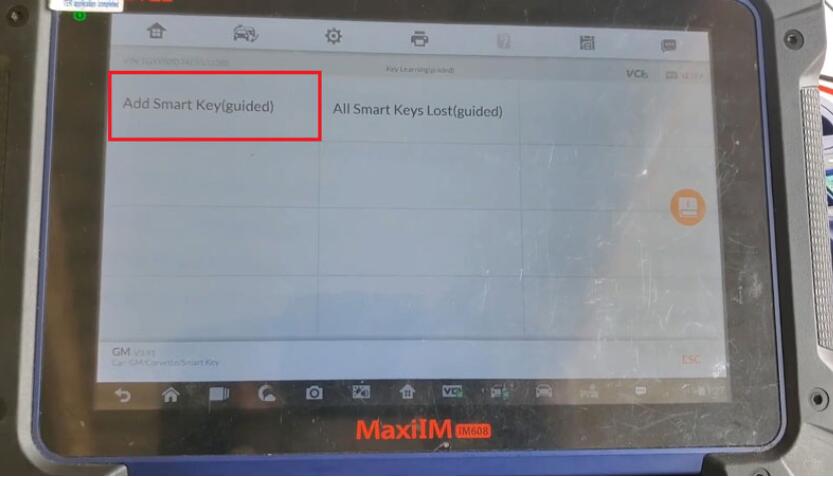

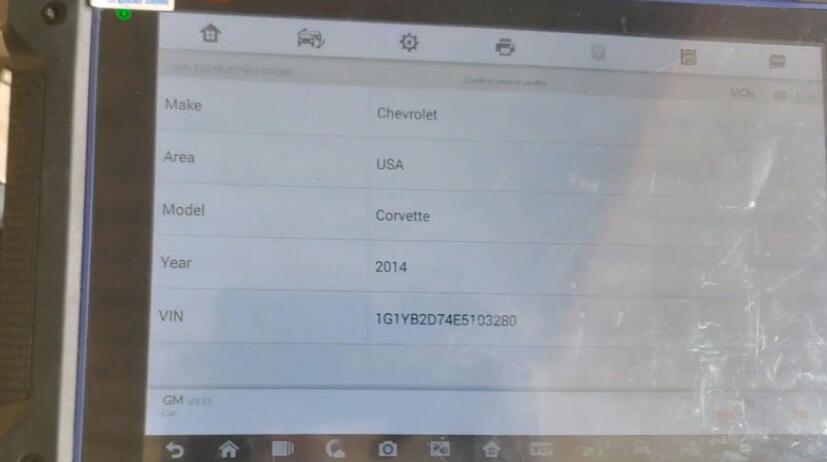

IMMO >> Accept >> GM >> Chevrolet >> Corvette >> 2014 >> Yes >> Hot function >> Add smart key >> Start
Do you want to start PIN reading? Press “Yes” to continue.

Autel IM608 Pro2 Notes:
1. It is recommended to use a USB cable to connect the VCI for this function process, otherwise the function may fail.
2. For some models, network connection is required.

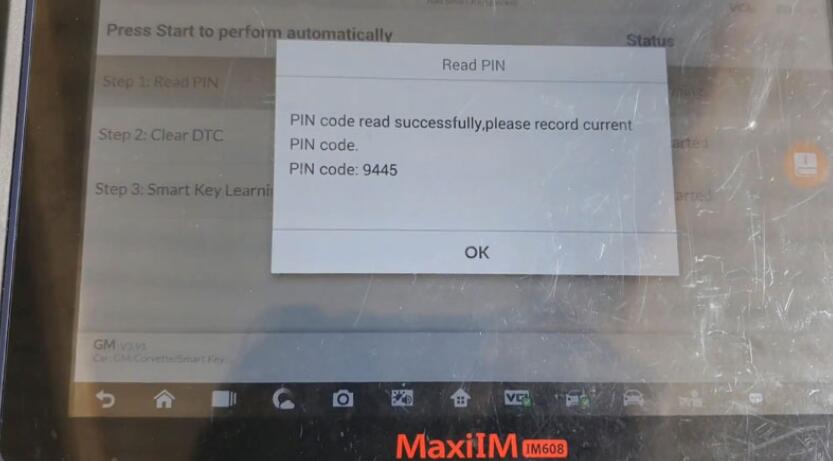

PIN code read successfully, please record current pin code: 9445.
Do you want to start the DTC clearing process? Yes
Do you want to start the key learning process? Yes


Place the Autel IKEY into key slot and take other keys out of the vehicle:
The key slot is usually:
1. In the armrest box.
2. Under the bottle rack.

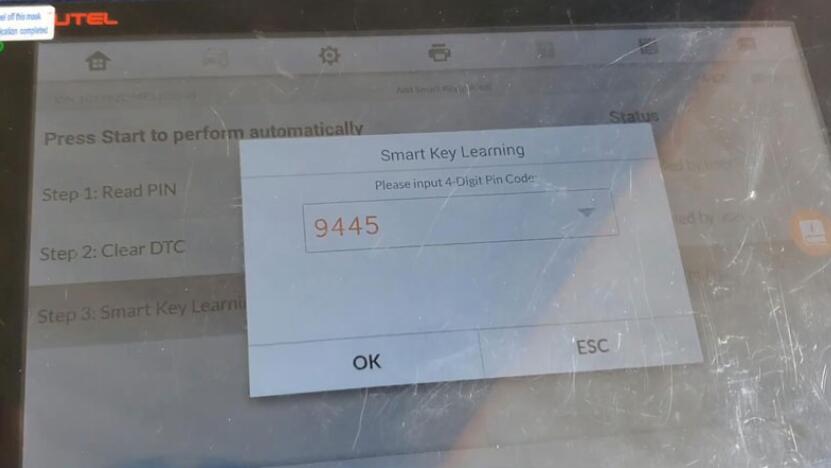

Input 4-digit pin code: 9445
Please switch the ignition off.
Please press the Start/Stop button once.

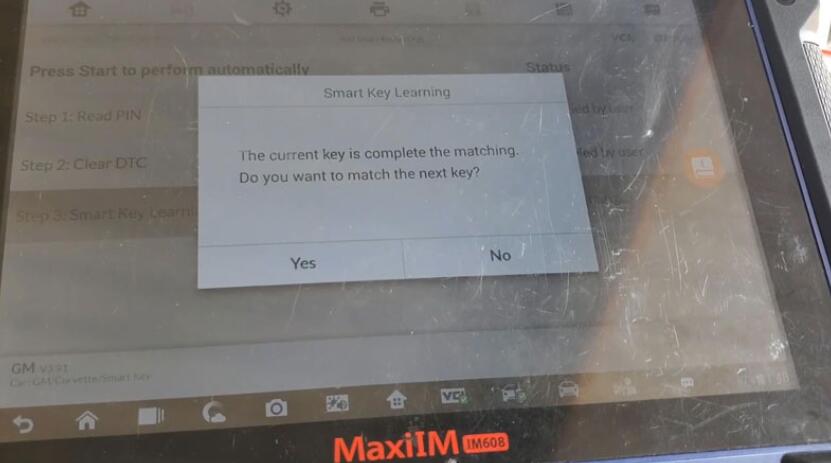

The current key is complete the matching.
Do you want to match the next key? No
Release the Start/Stop button.
Please long press the START/STOP button to turn the ignition on until the instrument light illuminates.
(If the instrument light is not illuminating, please release the START/STOP button and repeat it.)
Please switch the ignition off.
Depress and hold the brake pedal, press the Start/Stop button to start the engine and wait for 5s.
Please switch the ignition off.

Note:
1. Stop the engine.
2. Open and close the driver door.
3. Remove the smart key, press the Lock and Unlock buttons at the same time, and then release both.
Is there another key to be synchronized? No
Number of matched keys: 3

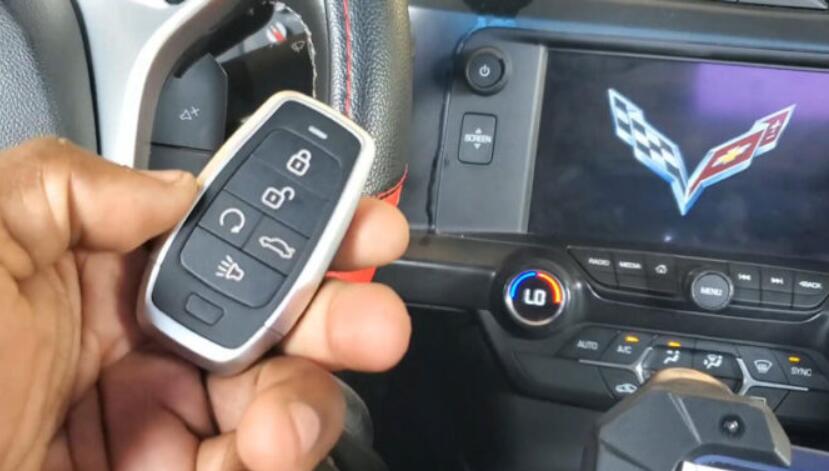

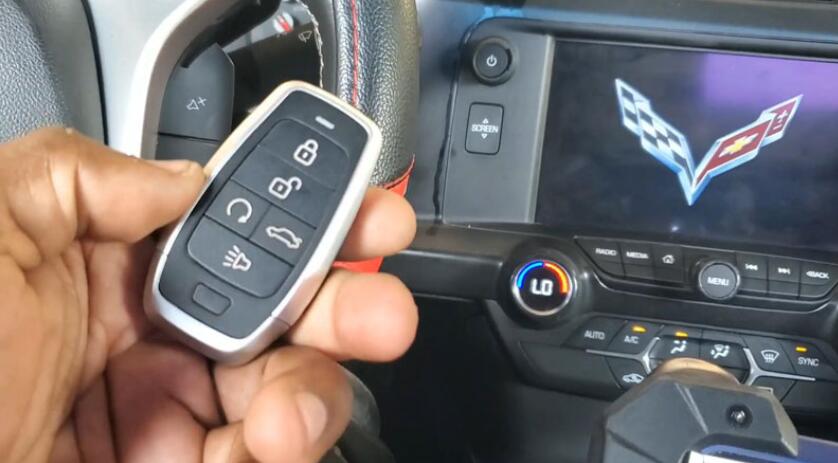

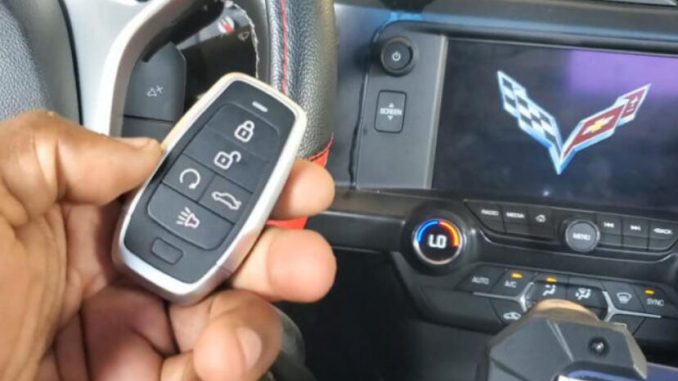

Test the new key. Remote works OK. It can start the engine.
Done.
