Best VXDIAG VCX Nano OBD2 Scanners Review 2021

Are you planning to buy a diagnostic scanner? The VXDIAG VCX Nano line of scanners offers some of the best options for diagnostic products. It’s safe to say each and every one of them is a top-quality tool for scanning a vehicle’s onboard systems.

VXDIAG VCX NANO is PC-to-vehicle interface compatible with multiple software applications, minimizing your investment in multiple brand-specific diagnostic interfaces.

Either way, once a connection is established, the scanner will run various diagnostic functions like reading DTCs, resetting systems, adaptations, programming, actuation, etc.

Note that VXDIAG VCX Nanodevices rely on diagnostic applications to carry out their functions. For example, while the VXDIAG VCX Nano GDS2 and Tech2Win come with GDS2 and Tech2Win software, VXDIAG VCX Nano JLR SDD comes with SDD.

Remember, never take any of them before you know exactly what you need and if the scan tool suits you.

Best VXDIAG VCX NANO OBD2 Scanner

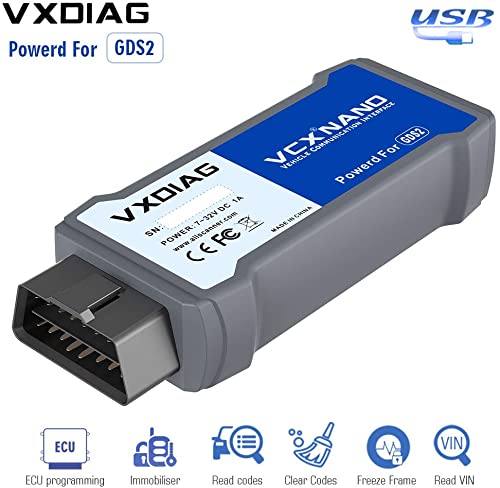

1. VXDIAG VCX Nano GDS2 and Tech2Win Diagnostic Programming System for GM/Opel

Like all other VXDIAG VCX Nano boxes, this particular unit acts as an interface between your vehicle and PC. It doesn’t use Wi-Fi or any form of wireless connection and instead connects to a vehicle’s computer using a cable. Depending on your vehicle’s OBD2 interface, this scanner will offer functions like DTC error codes, relearn, advanced reset, and so much more. It comes with a program that installs on a computer. From there, you can use the GDS2 and Tech2Win applications.

Compatibility

So which vehicles does this VXDIAG VCX Nanotool support? That would be GM and Opel models. It is fully compatible with all the current and most legacy protocols. They include:

CAN
Class2
GM LAN
KW2000
UART
SAE-J2534-1
SAE-J2534-2

With regards to applications, first, it supports PC-based diagnostics that rely on the Global Diagnostic System – both GDS and GDS2. Additionally, it works with Tech2Win, a diagnostics platform for GM vehicles.

However, note that this VXDIAG VCX Nano will only work with Tech2Win when its software is installed on a 32-bit PC. That goes for Windows 7 as well as Windows 10.

As far as diagnostics, you can use it with third-party diagnostic applications that scan any system in a vehicle. Whether it diagnoses the engine, ABS, SRS, transmission, instrument panels, and what have you, it’s almost certain this device will work with it.

Connectivity

On one end, the adapter features a port that hooks directly to the vehicle. The other end has a USB port. That’s what you use to connect the VXDIAG VCX Nano to a computer. The connection will enable the vehicle and PC to communicate while using the adapter as an interface. You can use Windows XP or a later version. Note that if you’re running Windows 7 or 10, the machine needs to be 32-bit.

Functional features

By supporting vehicle protocols (CAN, Class2, GM LAN, KW2000, UART, etc.) and standards (SAE-J2534-1 and SAE-J2534-2 standards), this VXDIAG VCX Nano box makes it possible to do vehicle maintenance and generate service reports.

The GDS2 software specifically supports diagnostic functions. You can read and clear codes, freeze frame data, retrieve VIN and ECU information, manage output control functions, and retrieve the diagnostic history.

While the device also supports a service programming system (SPS), you will need to purchase a software subscription.

On its part, Tech2Win offers almost all the features of GM’s Tech2. That includes PIDs, graphing, programming, and reprogramming of modules.

Size

A compact device, this VXDIAG VCX Nano is a pocket-size gadget. It measures 8.3 x 6.3 x 1.9 inches and weighs 9.6 ounces.

Pros

A very affordable price tag
Stable software that activates and functions without issues
Compatible with both GDS2 and Tech2Win
Supports a wide array of vehicle protocols, which makes it ideal for mixed fleet use
Easy to attach to vehicle’s diagnostic connector
Multilingual menus

Cons

Only compatible with Windows XP and 32-bit of any later version of Windows
To get programming functions you need to buy GM subscription
Some customers have reported problems when installing software

Despite the advanced functionality, this VXDIAG VCX Nano is very simple to use. It is designed for the ordinary car owner. With it, you can diagnose various onboard systems and do relearn as well as advanced reset.

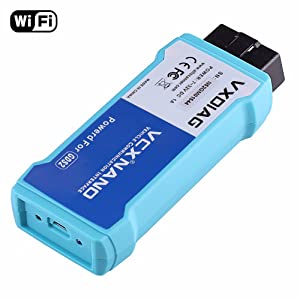

2. VXDIAG VCX Nano GDS2 and Tech2Win Diagnostic Programming System for GM/Opel Wifi Version

Save for connectivity, this Wi-Fi version of the VXDIAG VCX Nano is similar to the cable version. They are both interfaces that link a vehicle’s computer system with a PC. Plus, they both enable diagnostic functions like DTC error codes, relearn, advanced reset, etc. The biggest difference is how they connect to a computer. While the cable version uses a cable (obviously), this one uses a wireless connection (Wi-Fi). But it does come with a USB cable just in case you prefer a cable connection. Once connected to a computer, you can use GDS2 and Tech2Win applications.

Compatibility

It is a GM/Opel adapter that connects to the OBD2 port. The device is compatible with all current and most legacy protocols like:

CAN
Class2
GM LAN
KW2000
UART
SAE-J2534-1
SAE-J2534-2

Like the cable version, this adapter is compatible with the Global Diagnostic System (GDS2) and Tech2Win. In fact, you get both when you make the purchase.

Besides that, it also supports third-party applications that run diagnostic functions for all onboard systems. This feature means if you have the device, you can diagnose the engine, ABS, SRS, transmission, instrument panels, and so much more.

Connectivity

Now, this is where the Wi-Fi version of VXDIAG VCX Nano boasts unique features. Instead of connecting to a PC using a USB cable, it does so wirelessly using Wi-Fi.

So how it works is that the OBD2 port of the adapter hooks the OBD2 port of a vehicle. And instead of using a USB cable to link the adapter to a computer, you simply use Wi-Fi. That will enable the computer to communicate with the vehicle’s computer systems.

As you might already suspect, the computer must be Wi-Fi enabled. But in the package is a USB cable for those who don’t fancy a wireless connection. It is also noteworthy that the VXDIAG VCX Nano installs in a Windows XP or Windows 7 (strictly 32-bit) computer.

Functional features

You can use the VXDIAG VCX Nano Wi-Fi version for various diagnostic functions thanks to the GDS2 and Tech2Win applications.

Specifically, GDS2 makes it possible to carry out diagnostic functions. They include read and clear trouble codes, freeze frame data, retrieving VIN and ECU information, managing output control functions, and retrieving the diagnostic history. You can also purchase a subscription for a service programming system (SPS).

On the other hand, Tech2Win is excellent for PIDs, graphing, programming, and reprogramming modules. It is ideal for road tests.

Size

With dimensions of 7.4 x 6.4 x 1.9 inches and a weight of 9.8 ounces, the VXDIAG VCX Nano Wi-Fi adapter is a highly portable and easy-to-store device.

Pros

The software installs easily
A broad range of diagnostic functions, some of which are not supported by generic scan tools
Firmware is updated online
Works on virtually all GM and Opel vehicles, including SUVs and light trucks
Pocket-sized, which is easily portable

Cons

Only works on GM and Opel vehicles; other models are not supported
The software requires a PC with 32-bit installation, and doesn’t work in 64-bit computers
Programming and reprogramming require different software, which you have to purchase through subscription

This OBD2 scanner has the same target audience as the VXDIAG VCX Nano with a cable. It is a straightforward scan tool for use by the ordinary car owner. Besides codes, it will help you perform more advanced functions like relearn, advanced reset, etc.

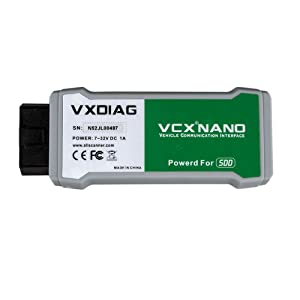

3. VXDIAG VCX Nano JLR SDD Diagnostic Programming Tool for Jaguar and Land Rover

The VXDIAG VCX Nano JLR SDD for Jaguar and Land Rover comes as a full package. You will find the VXDIAG VCX Nano main unit, a USB cable, and a CD with the unit’s software in the box.

You will need to install the software on a PC. It’s a pretty simple and straightforward process. Once complete, plug the adapter into your vehicle’s OBD2 port.

After that, connect its other end with a USB cable and let it run to the PC. That’s about it with the connection. This VXDIAG VCX Nano will enable communication between the vehicle’s computer systems and the PC as a PC-to-vehicle interface.

It makes it possible to perform various diagnostic functions. Plus, the adapter and software work with multiple third-party diagnostic applications. That means you won’t have to purchase several brand-specific diagnostic interfaces.

Compatibility

Which vehicles can you use this VXDIAG VCX Nanodevice with? Well, its title is a giveaway. The adapter is suitable for Jaguar and Land Rover vehicles, particularly those manufactured between 2005 and 2017.

More specifically, it is fully compatible with

Land Rover Models
L316
L319
L320
L322
L359
L406
L494
L550
L538
For Jaguars
X100
X150
X152
X202
X250
X350
X351
X400

That goes for diesel as well as gas engines.

As far as protocols, the scanner supports every single Jaguar and Land Rover protocol. As long as your vehicle is in the product line listed above, you can bet that it is compatible.

Connectivity

As already mentioned, the VXDIAG VCX Nano for Jaguar and Land Rover comes with software installed on a computer. The two then communicate via a USB connection.

But not just any computer will do. It should be a Windows machine running Windows 7 or a later version. Also, the OS should strictly be a 32-bit version. Minimum system requirements include 4GB RAM and an i5 processor.

Functional features

Perhaps the most important functional feature of this scan tool is JLR’s Symptom Driven Diagnostics (SDD) that accompanies the device. The diagnostics system is one of the most efficient in fault finding.
It doesn’t just retrieve codes; it also analyzes them and tells you what exactly is faulty with the vehicle. Additionally, the diagnostic report will come with recommended fixes. That makes your work a lot easier.

Generally, the SDD system supports the reading and clearing codes for the engine, ABS, and SRS. You can also use it for programming & reprogramming modules, programming keys, clearing adaptations, DPF regeneration, activating pumps for brake bleeding, etc.

Size

This VXDIAG VCX Nano is one compact tool. It measures just 15 x 10 x 3 inches and weighs a mere 3 pounds. That shouldn’t be hard to carry and use.

Pros

Supports all the protocols of Jaguar and Land Rover vehicles
Multilingual, a total of 21 languages, including English, French, Spanish, Chinese, Italian, and many more
Works on gas and diesel engines
Comes with full-time online support
Small and compact size

Cons

While the device supports immobilizer programming, you need to have a paid Jaguar account for you to use the service
Doesn’t work on Windows 64-bit computers
Supports two vehicle models only – Jaguar and Land Rover

Like the first two VXDIAG VCX Nanos, this tool is a consumer tool. The simplicity of connection and usage makes it ideal for ordinary car owners. It even has a Wi-Fi version for those who prefer a wireless connection.

VXDIAG VCX Nano Buying Guide

VXDIAG VCX Nano OBD2 scanners are undoubtedly some of the best in the market today. Even so, not all of them are created equal. So how do you ensure that you choose the best one for you? Here’s a buying guide:

Compatibility

Which of the three VXDIAG VCX Nano car diagnostic tools would you say suits you best? Well, obviously, it first has to be compatible with your vehicle.

The last thing you want is to purchase an OBD2 scanner that doesn’t cover your vehicle. While some support specific brands, others cover virtually all makes and models of vehicles.

In that regard, VXDIAG VCX Nano OBD scan tools are designed for specific makes of vehicles. For instance, the VXDIAG VCX Nano GDS2 and Tech2Win are meant for GM and Opel vehicles. On the other hand, the VXDIAG VCX Nano JLR SDD is for Jaguars and Land Rovers.

The point is, make sure the car diagnostic tool will, in fact, work with your vehicle.

Functionality

Does it offer all the functions you want? VXDIAG VCX Nano scanners come with varying capabilities. Some only support basic functions like codes.

And then some allow advanced diagnostics.
You can do relearns, programming, reprogramming, actuation, and so much more.

Most VXDIAG VCX Nanotools support basic and advanced functions.

That is what makes them good for ordinary car owners as well as professional technicians. For example, both the VXDIAG VCX Nano GDS2 and Tech2Win and VXDIAG VCX Nano JLR SDD support basic and advanced diagnostics.
