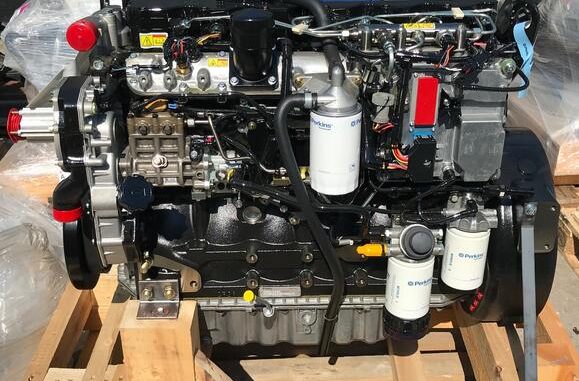

Perkins 1106D electric power generation (EPG) engines are known for their reliability and performance. However, like any machinery, they can encounter issues that require troubleshooting and repair. One common problem that can occur is the CID 0004 FMI 05 open circuit error, specifically related to the electronic unit injector for the No. 4 cylinder. In this article, we will guide you on how to diagnose and solve this issue.
Related Contents:
Perkins EST 2023A & 2022A & 2019A Software Free Download
Perkins Communication Adapter 3
Perkins EST Interface EST Diagnostic Adapter 2023A With WIFI
This diagnostic code indicates an open circuit (low current) in either the solenoid or the wiring for the electronic unit injector for No. 4 cylinder.
The Electronic Control Module (ECM) detects the following condition:
• A low current condition (open circuit) for each of five consecutive attempts to operate
• Battery voltage is higher than 9 volts for 2 seconds.
System Response:
The ECM will log the diagnostic code. If equipped, the diagnostic lamp will flash.
Possible Performance Effect:
The engine will have low power and/or rough running.
Troubleshooting:
When the “Injector Cutout Test” is performed, a faulty electronic unit injector will indicate a low reading in comparison with the other electronic unit injectors.
An electrical fault can prevent the electronic unit injector from operating. An open circuit in the wiring that is unique to the electronic unit injector will prevent that individual electronic unit injector from operating.
An open circuit in common wiring within the ECM can prevent the three electronic unit injectors that share that common wiring from operating.
The ECM will continue to attempt to operate the electronic unit injector after the diagnostic code has been logged but an open circuit will prevent the operation of the electronic unit injector.
Perform the following diagnostic procedure: “Injector Solenoid Circuit – Test”
More trouble repair case for Perkins,pls refer to:Perkins Trouble Repair
