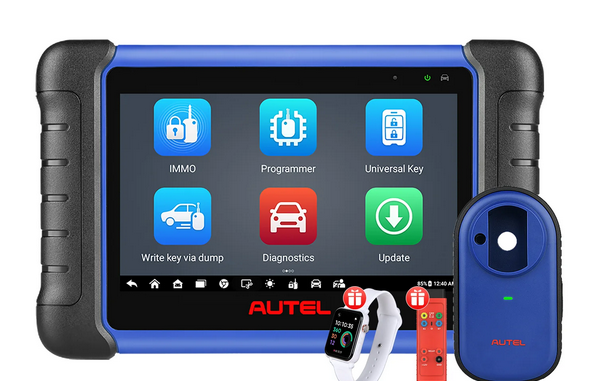

Recently, Autel released an upgraded version of IM508 called Autel IM508S. Many people may feel confused about the differences between these two models. So, what are the main upgrades of IM508S? Is it worth buying? Let’s take a look at the comparison table below.
| IM508 | IM508S | |
| Features | ||
| Processor | Quad core: 4x 1.6GHz(A9) | Quad core: 4x 1.8GHz(A55) |
| Operating System | Android 4.4.4 | Android 11 |
| Touchscreen | 7-inch | 7-inch |
| Resolution | 1024×600 | 1024×600 |
| Memory | 1G+32GB | 4G+64GB |
| SD Card | SD Card (Support up to 32GB) | SD Card (Support up to 64GB) |
| Rechargeable Li-ion Battery | 5000mAh | 5000mAh |
| Internet Updatable | Wi-Fi | Wi-Fi |
| Camera | NO | NO |
| Connection | OBD Cable | OBD Cable |
| Programmer | XP200 | XP200 |
| Weight | 0.78 kg | 0.78 kg |
| Remote Expert | NO | NO |
| Device/Report Management | Yes | Yes |
| Programmer Function (Note: All functions are covered most extensively when paired with XP400 PRO and its accessories) |
||
| Reading/Writing EEPROM | Yes | Yes |
| Reading/Writing MCU | Yes | Yes |
| Reading/Writing Engine ECU | Yes | Yes |
| Reading/Writing IMMO ECU | Yes | Yes |
| Universal Key Information Detection | Yes | Yes |
| Write key to ECU by programmer | Yes | Yes |
| Key Unlocking | Yes | Yes |
| Frequency Detection | Yes | Yes |
| Key tool Functions | ||
| Universal key generation | Yes | Yes |
| Chip Simulation (Need APB112) | Yes | Yes |
| Diagnostic Functions | ||
| Auto VIN | Yes | Yes |
| Reading/ Erasing codes | Yes | Yes |
| Read Live Data | Yes | Yes |
| Read Freeze Data | Yes | Yes |
| Read ECU information | Yes | Yes |
| Active Test | Yes | Yes |
| Service Function | Yes(40+service features) | Yes(40+service features) |
| Special Function | Yes | Yes |
| Online Coding | No | No |
| Offline Coding | No | No |
| Hidden Function | No | No |
| Guided Function | No | No |
| Offline Programming | No | No |
| Cloud Service | Report Management | Report Management |
| Other | Remote Desk CANFD(Adapters required) | Remote Desk CANFD(Adapters required) |
Based on the comparison, the main upgrades of IM508S include improved hardware with a faster processor and enhanced memory. The key programming functionality has also been expanded to cover more vehicles.
Ultimately, whether it is worth purchasing IM508S depends on your specific needs and budget. If you require expanded vehicle coverage, along with the upgraded hardware, then IM508S would be a good choice.
