How to configure DTS Monaco with VAS 5054A

It is possible to configure DTS Monaco to work with VAS5054A in mvci mode with smr-d files. All you need to set correct setting in configurator.

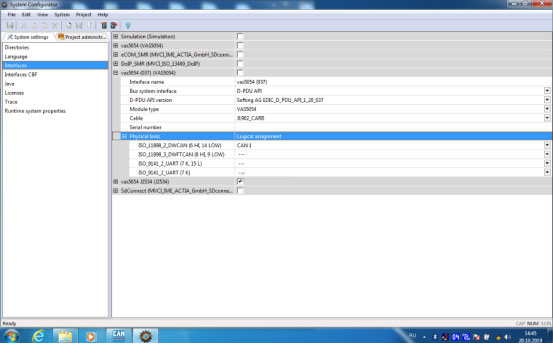

First possibility to set any edic d pdu api from Odis , for example 1_20_37,1_20_34, etc.

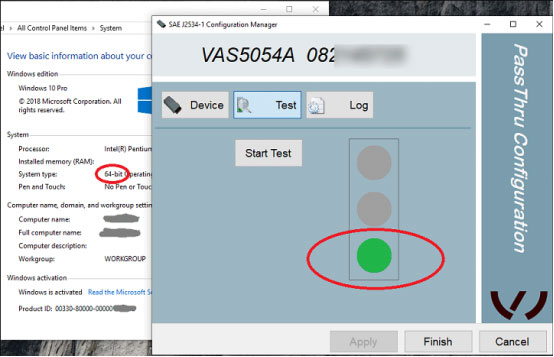

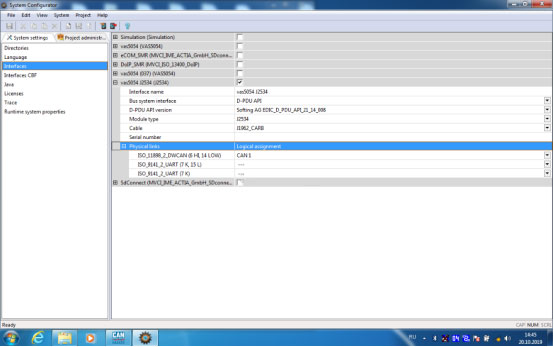

Second to configure as J2534.
Works through usb and bluetooth.

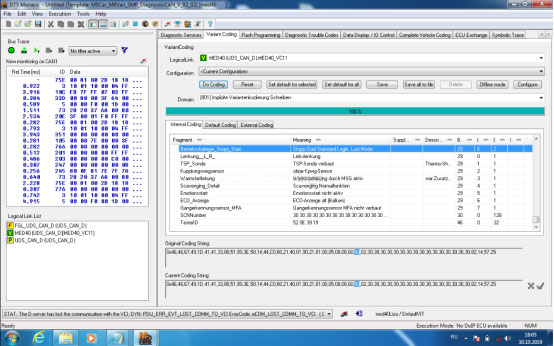

Tested with GLC, med40 on different cars.



Attachment:

PT driver
http://forobd2tool.com/wp-content/download/Lowest%20Price%20VAS%205054A%20ODIS%20V2.0%20Bluetooth%20VW%20Audi%20Skoda%20Seat%20Vag%20Diagnostic%20Tool/how-to-setup-vas-5054a.pdf

For edic pdu http://forobd2tool.com/wp-content/download/Lowest%20Price%20VAS%205054A%20ODIS%20V2.0%20Bluetooth%20VW%20Audi%20Skoda%20Seat%20Vag%20Diagnostic%20Tool/vas-5054a-setup-instruction.pdf



Suggestion:

You’re advised to use DTS with sd connect c4

and use odis with VAS5054A
