Lonsdor K518POL Fiat Ducato 2008 ID46 Programming of the remote control

How to use Lonsdor K518S/K518ISE to program Fiat Ducato 2008 ID46 Key successfully Video:

This is original working Fiat Ducato 2008 ID46 key.

Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-1

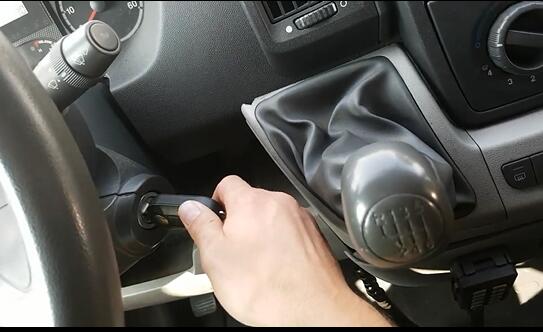

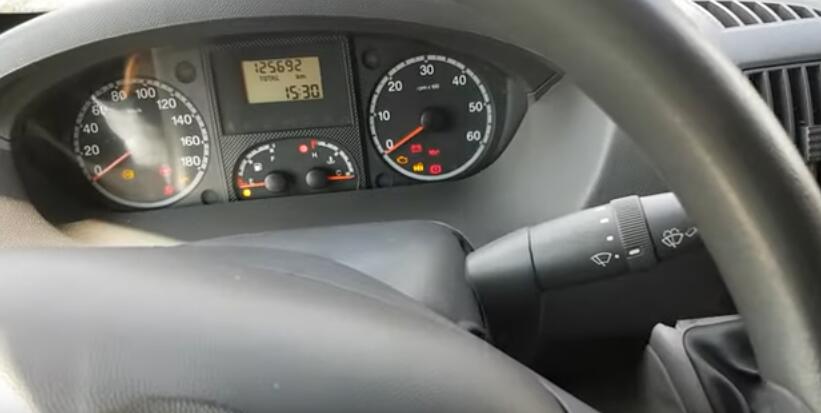

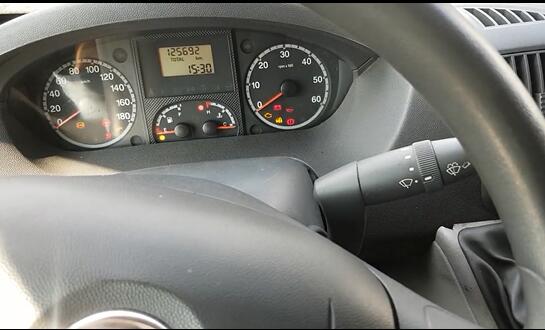

Use the original key to turn on the ignition.

Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-2
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-3

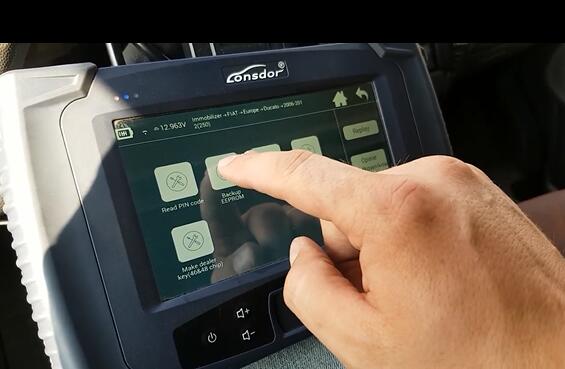

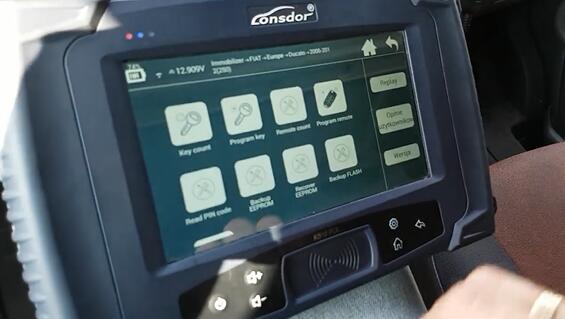

Plug the Lonsdor K518S key programmer into Fiat car, tap “Immobilizieir -> Fiat -> Europe-> Ducato -> 2006-> 2012 (250) -> Backup EEPROM”.

Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-4
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-5

Downloading application.

Loading…

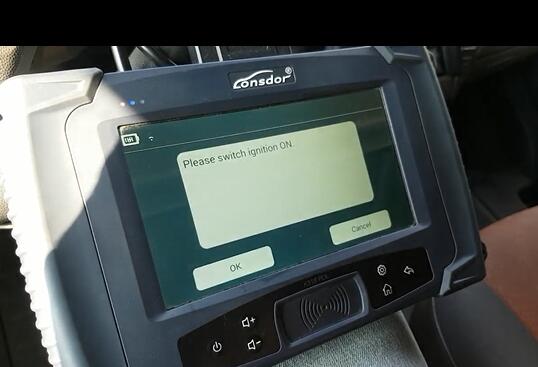

Please switch ignition ON.

Communication connecting, please wait…

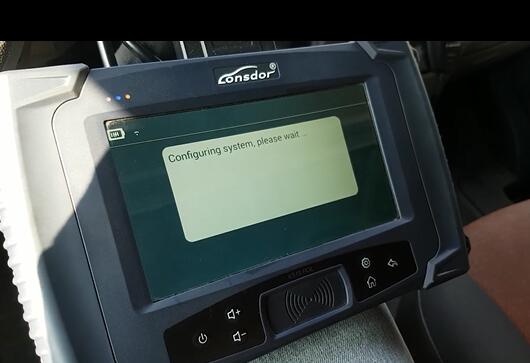

Configuring system, please wait…

Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-6
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-7

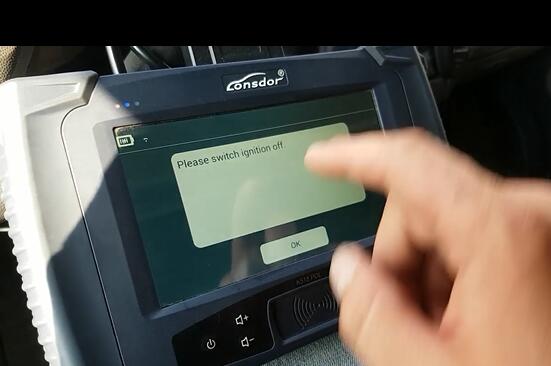

Please switch ignition switch off.

Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-8

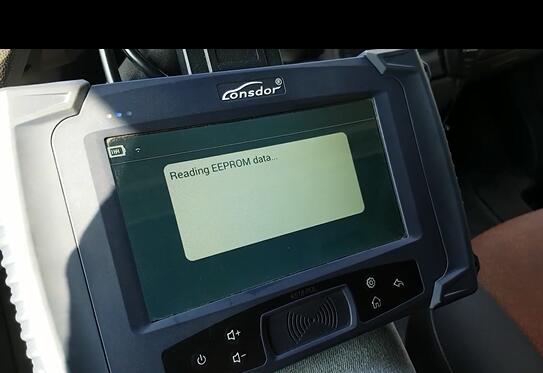

Reading EEPROM data.

Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-9

Please enter the name of the file to be saved.

Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-10

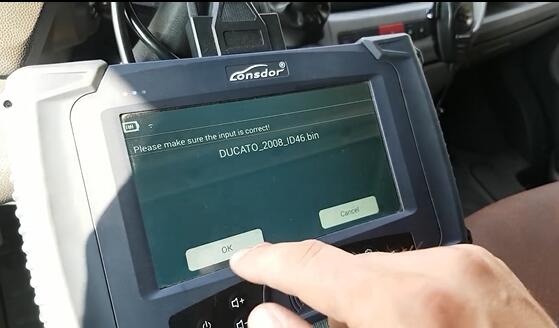

Please make sure the input is correct! Ducato_2008_ID46.bin.

Backup success.

Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-11
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-12

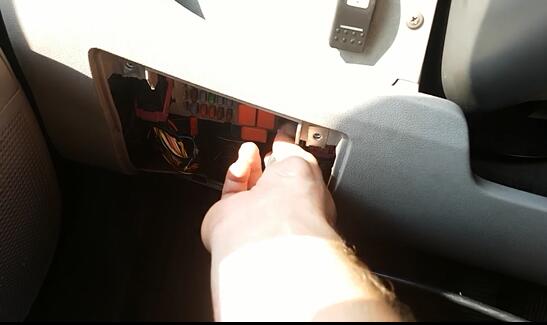

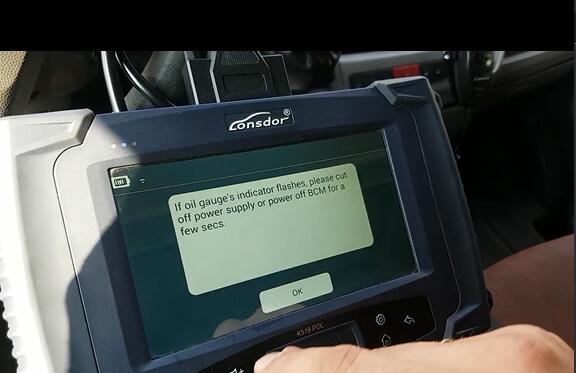

If oil gauge’s indicator flashes, please cut off power supply or power off BCM for a few secs.

Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-13
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-14

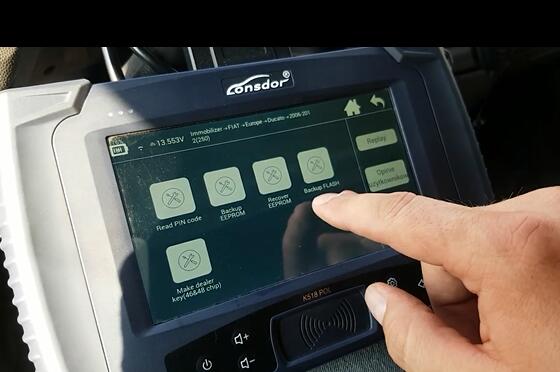

Back to the menu to select “Make dealer key (46 & 48 chip).

Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-15

Downloading application…

Loading…

Please select “46 chip key”, and put the new blank new into the slot of Lonsdor K518S.

Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-16
Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-17

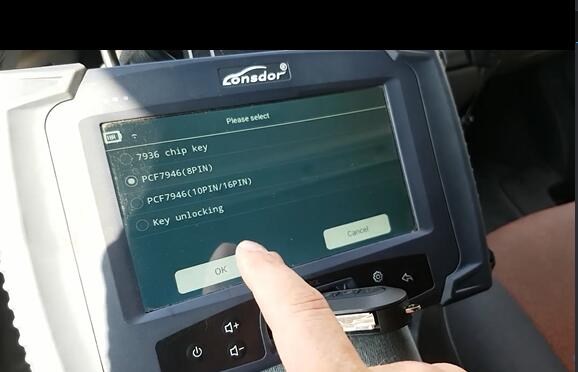

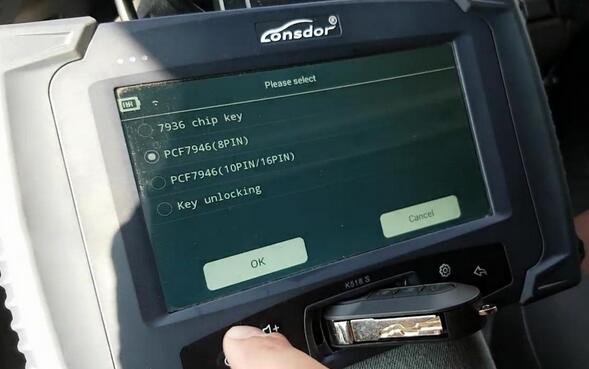

Select “PCF7946 (8PIN).

Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-18

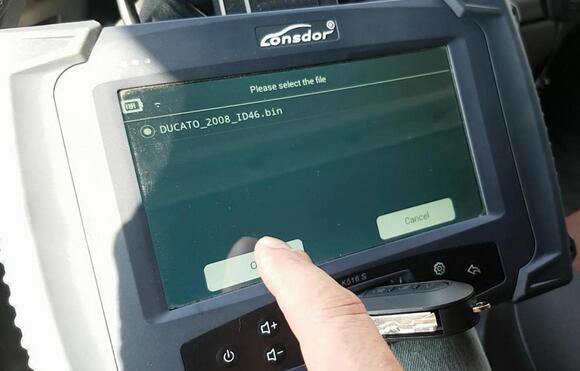

Select the file.

Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-19

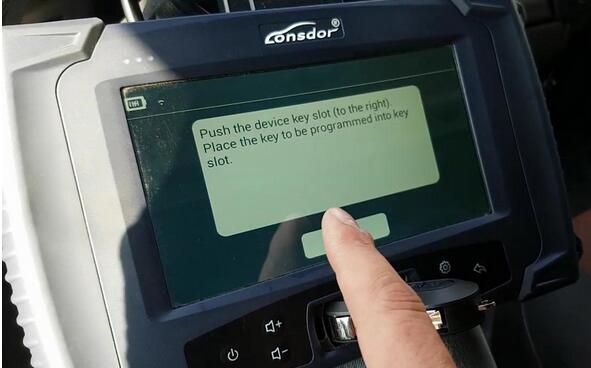

Push the device key slot (to the right). Place the key to be programmed into key slot.

Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-20

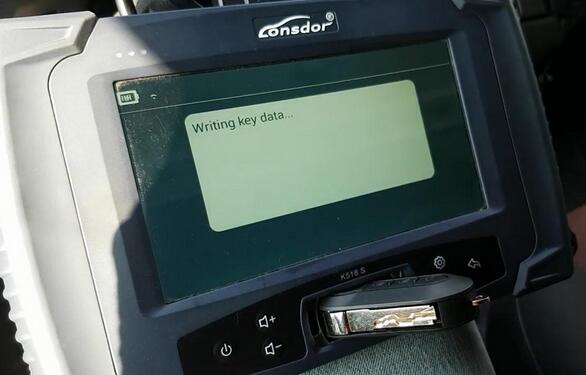

Writing key data.

Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-21

Generate the dealer key and lock the key success.

Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-22

ID: B175412B.

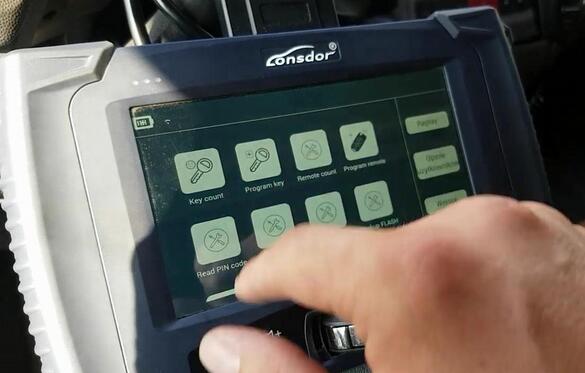

Tap ” Program key”.

Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-23

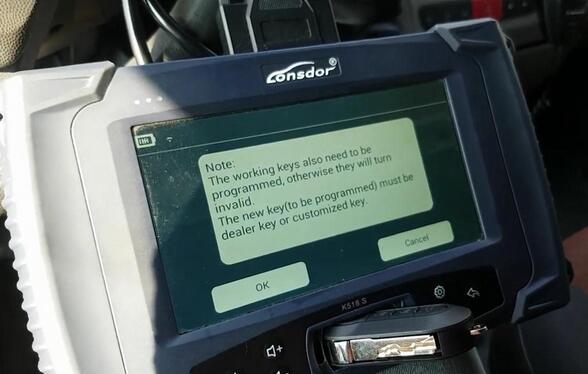

Note: the working keys also need to be programmed, otherwise they will turn invalid.

The new key (to be programmed) must be dealer key or customized key.

Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-24

Please switch ignition ON.

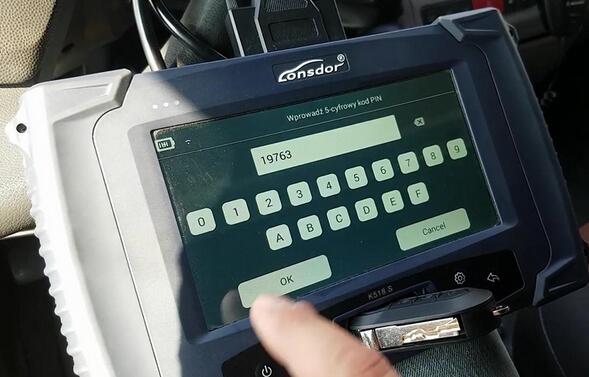

Please input the pin.

Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-25

Program key successfully, take off the original key from the ignition and insert the new programmed key to turn on the ignition.

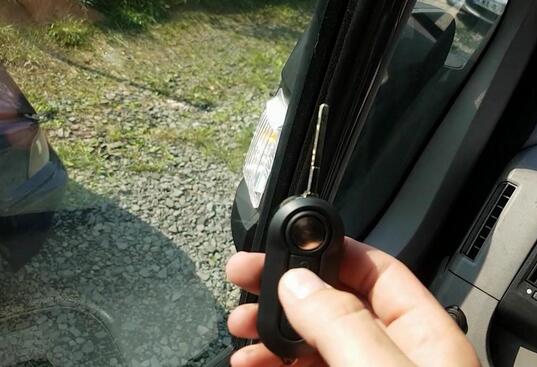

And test if the remote works.

Lonsdor-K518POL-Fiat-Ducato-2008-ID46-Programming-of-the-remote-control-26

That’s all! Lonsdor K518S can program Fiat Ducato 2008 ID46 Key perfectly.
