OTC GTS (IT3) Diagnostic Tool for Toyota and Support Toyota and Lexus

2

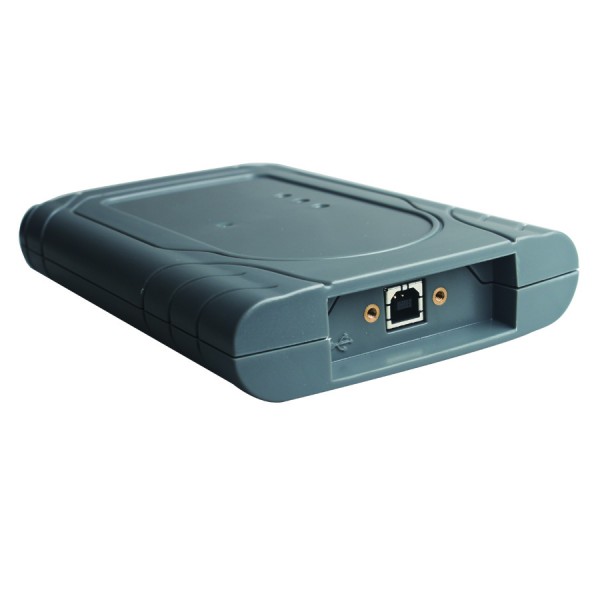

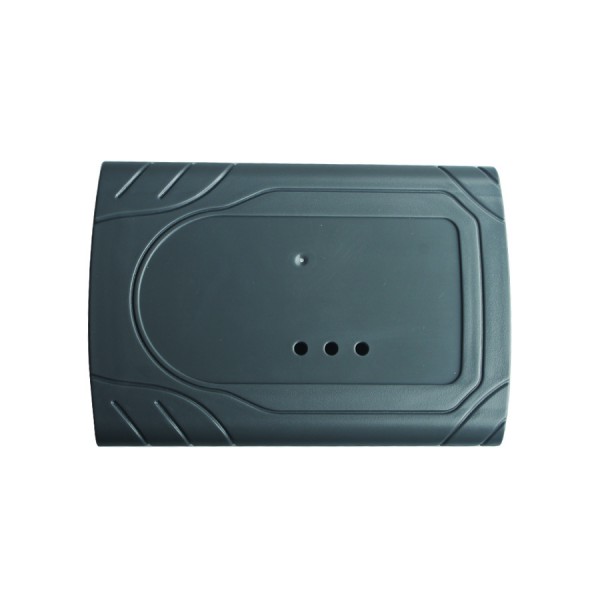

GTS is a new PC-based diagnostic tool developed by Toyota Motor Corporation. GTS diagnostic tool is connected with its software and vehicle VIM. GTS software is the core part of this diagnostic tool and VIM is the communication between GTS and vehicle ECU. These will help technicians diagnose and reset vehicle’s program.

4

Comparison Between OTC/GTS and IT2:

Item OTC/GTS IT2
Support Car After 2012 Before 2012
Date Keeper <60 mins <15 mins
DTC Code Yes No
Monitored State Yes No
Health Report Yes No
Multisystem Yes No
Vehicle identification Yes No
Online Update Yes No
Loging System Yes No

OTC GTS (IT3) Features and Function:
1. GTS is based-on-Windows software and specially designed for Toyota and Lexus.
2. VIM is connected to the vehicle when the technician use GTS to diagnose.
3. ”Legacy” module can work with all DLC3 (OBDII) port from 1993
4. Own all the function of”ITII” except Oscilloscope and voltmeters function.
5. User-friendly graphical User Interface displays the trouble codes on the PC monitor, it is easy to understand.
6. Its memory is larger than that of”ITII”.
7.It can support car till 2015
8.GTS need activation,one-time activation for one device

Language Available: English, German, French, Spanish, Italian and Chinese
