Question on the new Maxisys MS906, MS906BT, and MS906TS

MS906TS is added TPMS function based on MS906BT.

MaxiSys MS906TS is the latest addition to the MaxiSys product line of advanced wireless diagnostic devices integrated

with the TPMS antenna module. The device is based on the Android operating system featured with the best possible

coverage of OE-level diagnostics and TPMS integration. Utilizing the powerful Exynos 5260 6-core processor (1.3 GHz

quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), an 8” capacitive HD touch screen, and long-distance

wireless communication, the MaxiSys MS906TS efficiently provides comprehensive vehicle diagnostics and analysis

along with universal TPMS solutions.

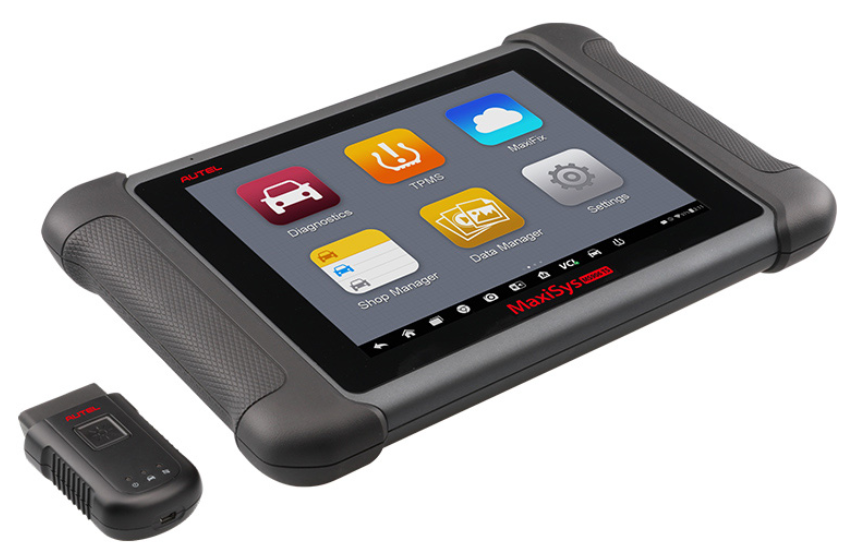

20170213075707_69559

Question on the new Maxisys MS906, MS906BT, and MS906TS
MS906 has the same apperance with MS906BT, but MS906BT has a few advantage than MS906:
1. MS906BT is installed Bluetooth, allowing diagnosis wirelessly.
2. MS906BT’s diagnostic coverage includes premium vehicle brands such as Maserati and Bentley, which would be required for high-end service shops.
3. MS906BT supports oscilloscope and digital inspection camera add-ons which are not supported by MS906.
4. Finally, MS906BT has the capability to perform coding for covered vehicles.

Top 3 Reasons to get Autel Maxisys MS906TS:

1.Wireless TPMS & Advanced Diagnostics System:Operating on the Android navigation system, the MS906TS provides amazingly fast sensor programming and diagnostic scan functions with its powerful running speed and large 32 GB solid state hard drive. The system also features the latest AutoVIN technology to identify vehicles in one touch as well as its exclusive AutoScan function. These features allow you to easily acquire vehicle information, scan all ECUs and run diagnostics on selected systems.

2.Optional Compatible Accessories: Featuring the best possible coverage of OE-level diagnostics and ECU coding capability, the MS906TS also supports add-ons like an oscilloscope and inspection camera to perform more extensive professional testing.

3.Autel Cloud: By and For the Community:As one of the fastest growing diagnostic companies in the world, Autel’s innovators are determined to extend the boundaries of wireless evolution. Supported by superfast 802.11b/g/n Wi-Fi, big data becomes even more accessible. Autel now integrates real-time big data into the MaxiSys system using cloud-based innovations:

MaxiSys MS906TS is the latest addition to the MaxiSys product line of advanced wireless diagnostic devices integrated with the TPMS antenna module. The device is based on the Android operating system featured with the best possible coverage of OE-level diagnostics and TPMS integration. Utilizing the powerful Exynos 5260 6-core processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15), an 8” capacitive HD touch screen, and long-distance wireless communication, the MaxiSys MS906TS efficiently provides comprehensive vehicle diagnostics and analysis along with universal TPMS solutions.

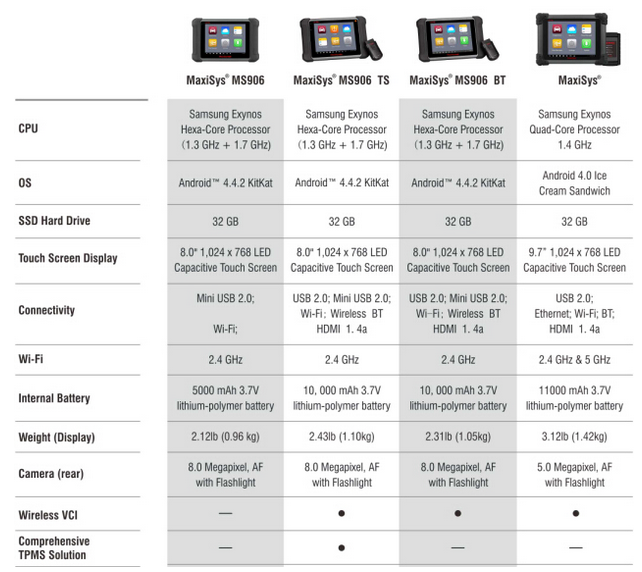

Specifications: 20160913084206_15874

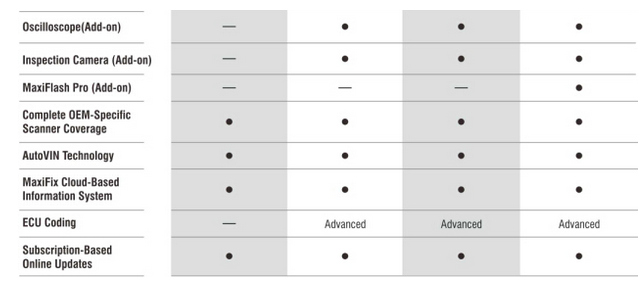

Autel MaxiSys MS906 vs MS906 TS vs MS 906 BT1120160913082229_2656820160913082307_78437
