Xhorse VVDI Key Tool Plus Adds ID4A Jeep Compass (2017-) Smart Key Success

Xhorse VVDI Key Tool Plus is able to add ID4A key (keyless go) for Jeep Compass(2017-) success using xhorse universal proximity. Now I’ll demonstrate how it works.

A FCA 12+8 SGW bypass adapter is required. You can use either Autel or OBDSTAR cable.

Program Remote

Connect VVDI Key Tool Plus with OBD.

Input the new smart key to Key Tool Plus slot, press

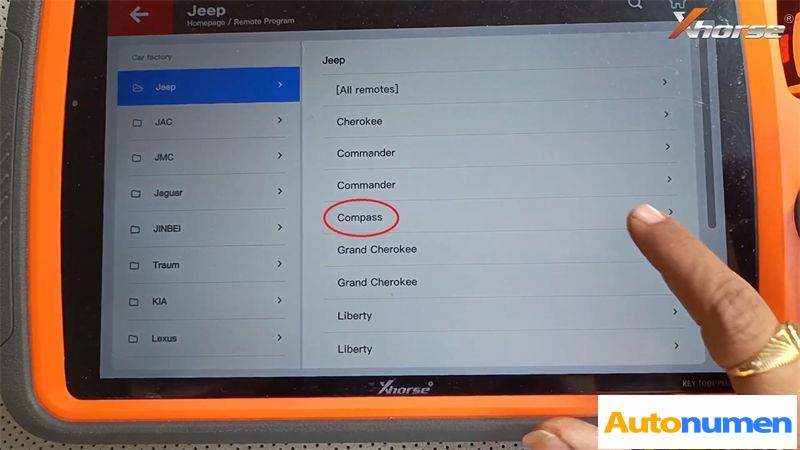

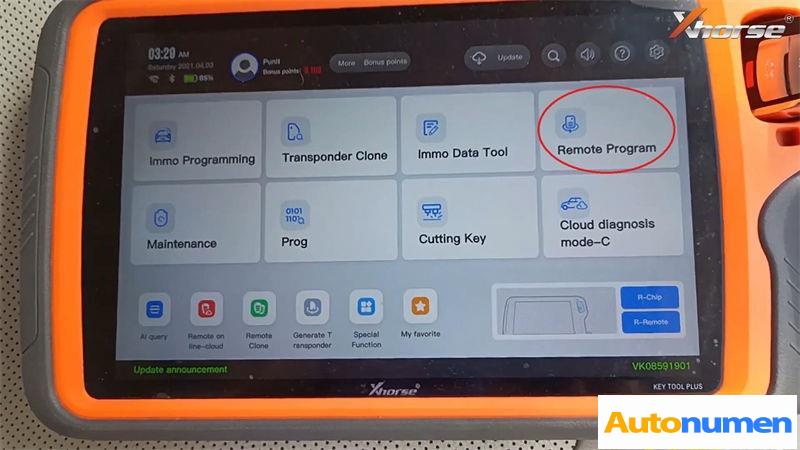

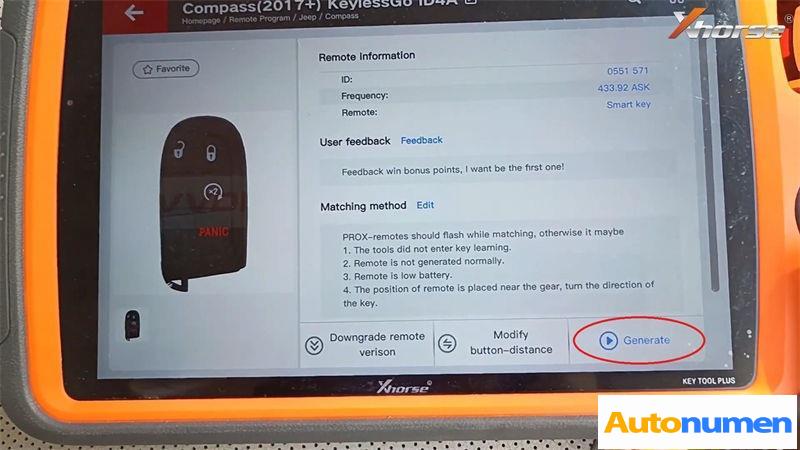

Remote program >> Jeep >> Compass >> Compass(2017+) KeylessGo ID4A >> Generate

Writing data, please wait..

Burn success.



Program Key

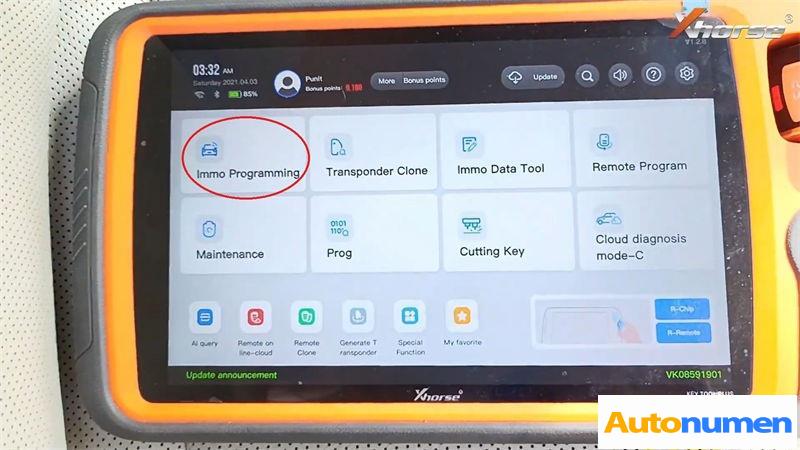

Go back to home page, press

Immo programming >> Jeep >> Select from model >> Asia >> Compass >> 2017- >> Keyless Go >> Start programming

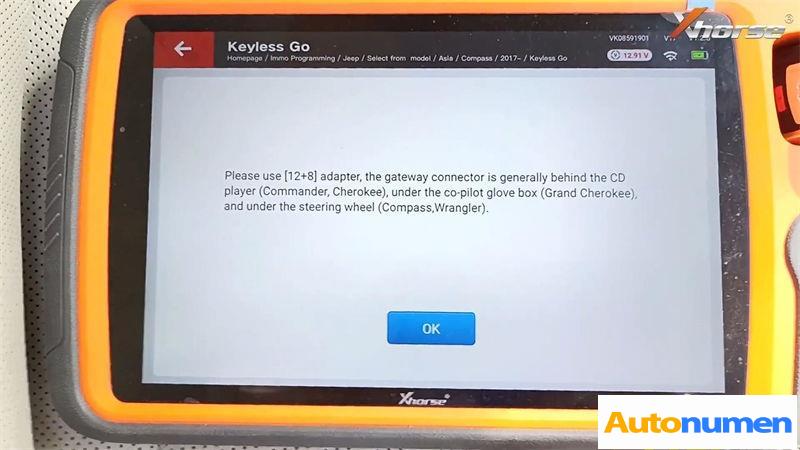

Please use 12+8 adapter, the gateway connector is generally behind the CD player(Commander, Cherokee), under the co-pilot glove box(Grand Cherokee), and under the steering wheel(Compass, Wrangler).

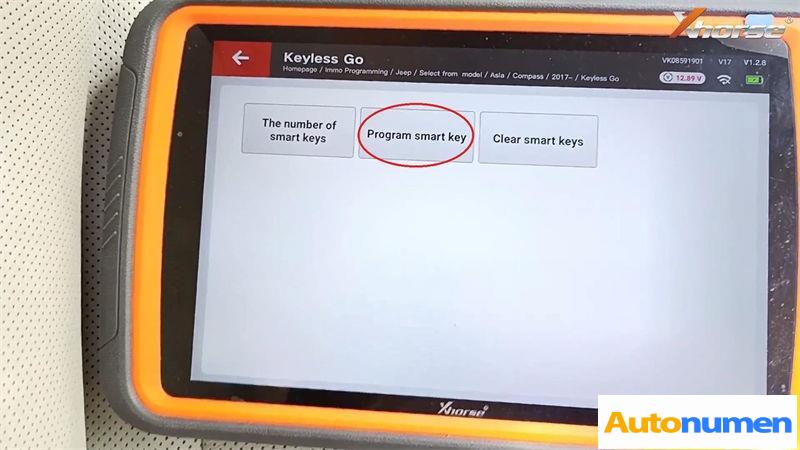

Press “Program smart key”.




Following the notes to operate:

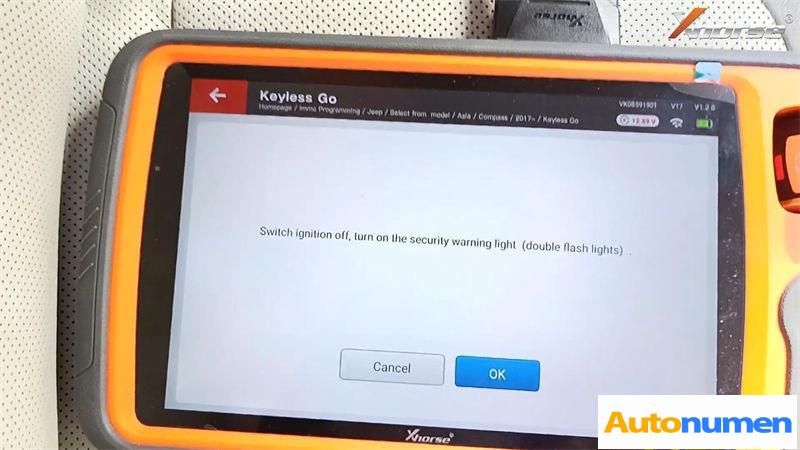

Switch ignition off, turn on the security warning light(double flash lights).

Please make sure there are no wireless devices near the smart key.

Reading the password…

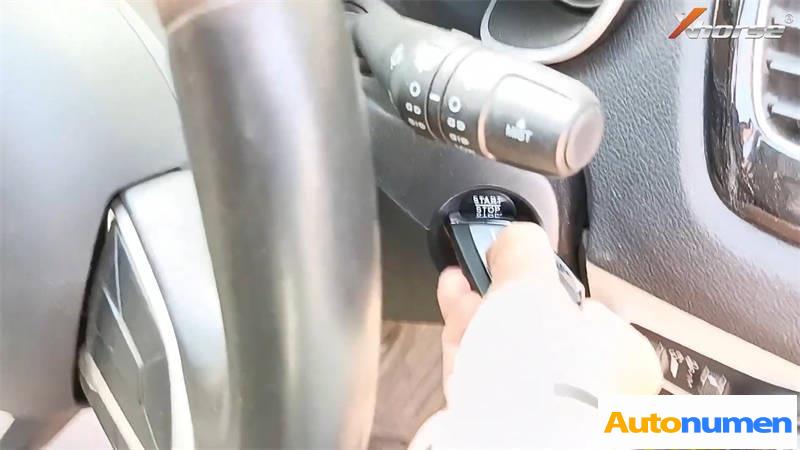

Keep the smart key to be programmed close to the central console(or start button), then press and release UNLOCK button on the remote once and wait for 5s, do not press any button during this time.

Note: the new key must be the original key of the current model, otherwise the program may fail.

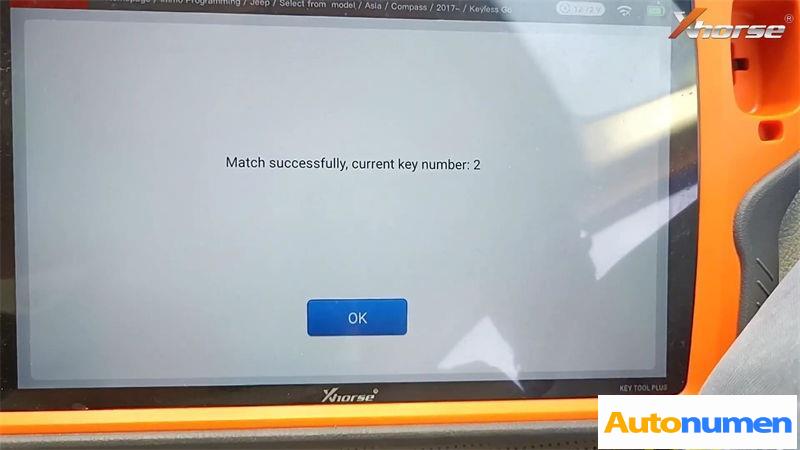

Match successfully, current key number:2.

Test the new key now, it does work well.

Key programming has done!




This is how to use VVDI Key Tool Plus to program a new key for Jeep Compass(2017-) successfully.
