Autel G-BOX + IM608 IM508 Mercedes Benz DAS3 All Key Lost solution

To have one extra Autel G-BOX (125usd) to connect to Autel MaxiIM IM608 / IM508, Mercedes Benz All Key Lost will have solution.

During the past days, there are mainly 4 frequently questions on Autel G-BOX.

Price?
Where can I get?
Does this work with IM100? I thought it was for IM600 only But, saw an advertisement, saying compatible with IM100.
Guide on how to use the Autel G-BOX?

Next parts, you will have answers one by one.

Answer the 1rd question:

Before deciding to purchase, you can email to autel official site for the authorized dealer, or you can inquire from friends where they purchased from. If it is a fake one, it may damage the car or can’t update.

The above one auteleshop.com is confirmed one authorized dealer.

Answer the 2rd question:

If you have IM100 not MaxiIM IM608 / IM508, you need to buy XP400 first, then G-box.

Answer the 3th question:

Guide on how to use the Autel G-BOX:

You will get quick guide when you buy it, and there are also instructions on the tool.

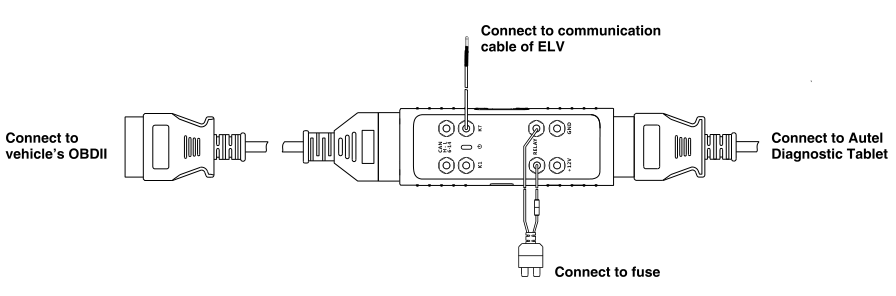

How to do via OBD When All Keys of Mercedes-Benz Vehicle Are Lost
This method is suitable for Mercedes-Benz W204, W207, W216 and W164 EISs after the year 2009.

How to connect step by step:
1). Connect the G-Box to vehicle’ s OBDII
2). Remove the fuse of vehicle EIS, Connect the Relay ports to the fuse using the supplied fuse cable
3). When the vehicle has an ELV, connect the K7 port and ELV plug using the supplied K-line cable
4). Connect the G-Box to the Autel Diagnostic Tablet (MaxiIM IM608, IM508)

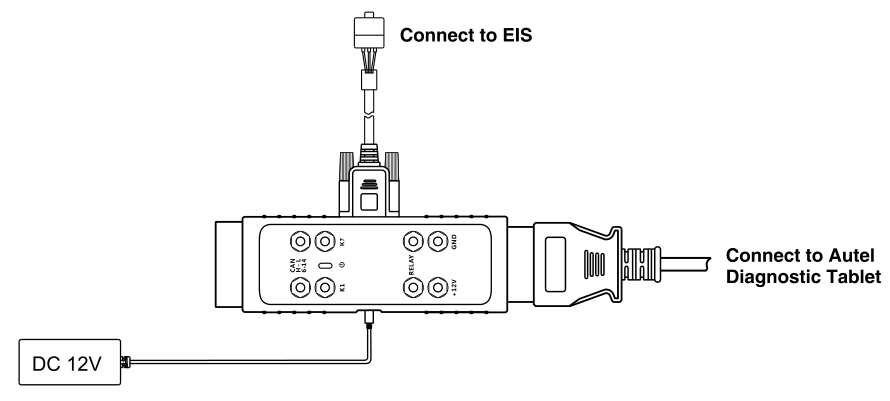

2. How to do on bench When All Keys of Mercedes-Benz Vehicle are Lost
This Method is suitable for all Mercedes-Benz EISs that are already supported by Autel Diagnostic Tablet

How to connect step by step:

1.Plugthe G-Box to the Mercedes-Benz EIS using thepacked DB15 Cable
2.Plug to the DC port of G-Box using a power adapter (DV 12V)
3.Plug the G-Box to the Autel Diagnostic Tablet (MaxiIM IM608, IM508)

Finally, Autel G-BOX + Autel MaxiIM IM608 / IM508 will have good performance:

1. MERCEDES-BENZ ALL KEYS LOST, FASTER PASSWORD CALCULATION.
– 8X TIMES FASTER PASSWORD CALCULATION FOR EIS W172, W204, W207;
– 4X TIMES FASTER PASSWORD CALCULATION FOR EIS W209, W211, ETC.

2. MERCEDES-BENZALL KEYS LOST, NO MORE REPEATED INSERTIONS AND REMOVALS OF IR SIMULATOR
W164/-2008,W251/-2008,W164/2009-,W169,W251/2009,W216,W221(partial),W202(K)/W208(K)/W210(K), W203(K)/W463(K)

3. MERCEDES-BENZ ALL KEYS LOST, CAN BE PROGRAMMED ON THE VEHICLE WITHOUT REMOVING THE EIS
EXCEPT FOR EIS W164/-2008, W251/-2008, W221, W202(K)/W208(K)/W210(K), AND W203(K)/W463(K), ALL OTHER EISS CAN BE PROGRAMMED ON THE VEHICLE DIRECTLY.

4. MERCEDES-BENZ ALL KEYS LOST, BMW DME/DDE ISN READING AND WRITING IN BOOT MODE
23 CATEGORIES OF BOSCH ENGINE, INCLUDING MEVD/EDC17. 6 CATEGORIES OF SIMENS/CONTINENTAL ENGINE, INCLUDING MSD/MSV ENGINE.
